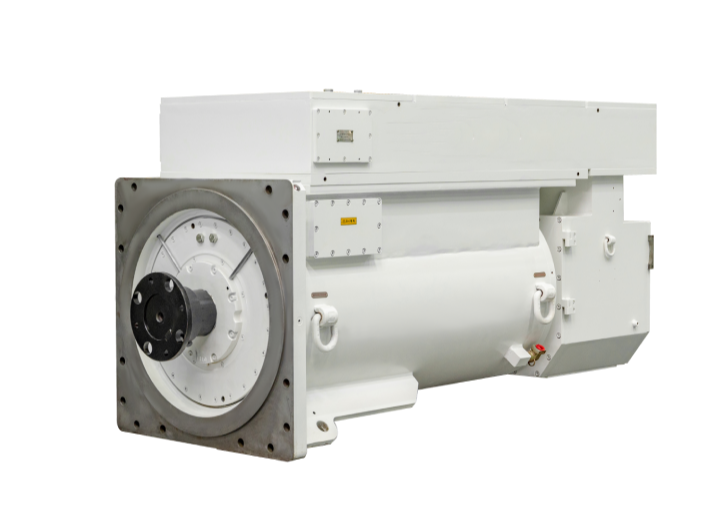

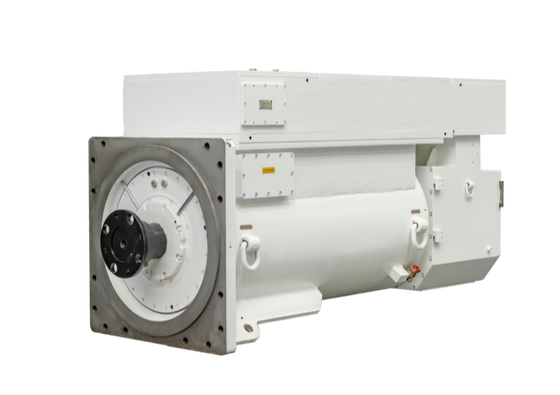

Our permanent magnet synchronous VFD integrated motor features excellent performance, reliable operation, and convenient use and maintenance. It accurately adjusts rotating speed according to load demand, significantly improving energy utilization efficiency and reducing energy consumption.
The compact design saves installation space and facilitates site layout and maintenance. As an effective combination of mine frequency converter and motor, it is the preferred solution for underground coal mine drive systems, solving field application problems and long-distance drive challenges for various mine frequency converters.
| Cooling Method | IC37W |
|---|---|
| Power Range | 200-1600kW (544-2175Hp) |
| Speed Range | 1500rpm |
| Frequency | 5-60HZ |
| Voltage Range | 1140-3300V |
| Protection Grade | Up to IP66 |
| Explosion Proof Type | Ex db |
| Mounting Type | IMB3, IMB5, IMB35 |
| Bearing | Rolling Bearing |
| Standards | GB, IEC |
| Certifications | CCC, MA |
